Rapatronic

A.1952-1

À la fin des années 1930, Harold Edgerton, ingénieur au MIT, a été le pionnier des techniques de photographie à ultra-haute vitesse, pour révéler une balle éviscérant une pomme, la spirale d’un coup de golf ou la chute d’une goutte de lait. Pendant la Seconde Guerre mondiale, Edgerton a travaillé avec la Commission de l’énergie atomique au développement d’une camera, le Rapatronic, capable de fixer le flash incandescent d’une explosion nucléaire jusqu’au milliardième de seconde. Sur une tour, à dix kilomètres du site d’essais, Edgerton et ses assistants ont ainsi pu enregistrer cette forme rougeoyante comme une forme de vie extraterrestre.

https://www.metmuseum.org/art/collection/search/281785

The mechanics and nuclear science of an atomic bomb were well and documented by the 1940’s. However, what scientists lacked was a video to reveal the fundamental workings of an atomic blast moment by moment. Such a video could provide immense insight into a new side of science, impossible to appreciate from the human eye alone.

Still images had captured instantaneous moments in nuclear explosions before, but they could not take photos with rapid enough succession or with enough precision to stitch a video together sufficient enough to provide any useful insight researchers have not previously observed.

It would be Dr. Harold Edgerton who would be tasked with developing a rapatronic camera – a camera system able to take photographs at a frame rate of 10 million frames per second.

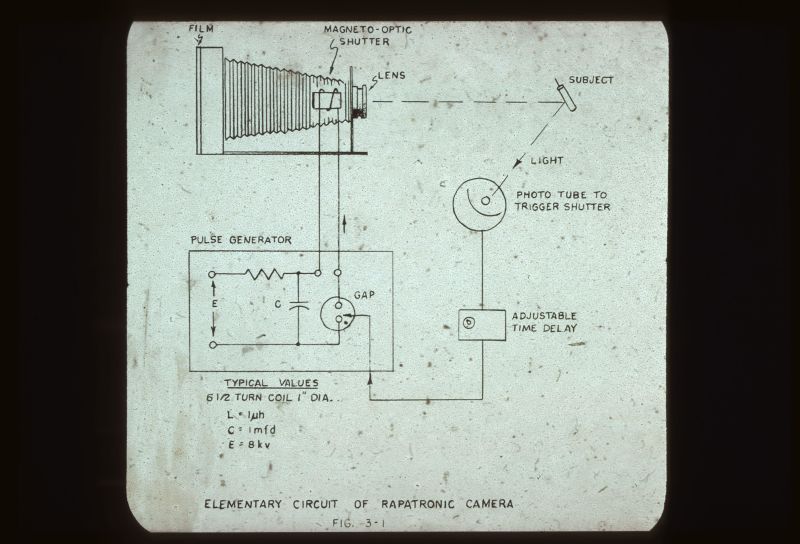

The impressibly fast shutter speed was made possible through an ingenious mechanism which could open and close a shutter seemingly instantaneously. Effectively, a coil was wrapped around a special cylinder. When induced with an electric current, the magnetic field created by the coils opens and closes the shutter in rapid succession (see video below). The rapid action and electronic of the device would lead to its name, the Rapatronic.

But it was not particularly the shutter speed – the time in which a shutter exposes a sensor to light – which prevented scientists from recording the first few milliseconds of a nuclear detonation before.

, the problem arose from a lack of ability to take photos with unfathomably fast shutter speeds in rapid succession. In other words, cameras simply did not have a frame rate fast enough to capture the first milliseconds of a nuclear explosion.

How an Ultra-slow Motion Rapatronic Camera Works

The solution to a buffered frame rate would not come as an improvement to a single camera’s frame rate. Instead, a rotating mirror would redirect light up to a curved film sitting above the mirror. each shutter actuation, the mirror would rotate slightly, enabling the next frame to be taken as quickly as 10 billionths of a second later.

“The exposures were often as short as 10 billionths of a second, and each camera could take only one photograph. As a result, banks of four to 10 cameras were set up to take sequences of photographs during a single nuclear test.” According to Nevada National Security Site (NNSS).

Stitching the images together reveals the inner beauty of a destructed demon – a perception which could never be appreciated through the human eye.

Below, Charles Wyckoff, one of the developers of the Rapatronic camera, explains the technology he and Dr. Edgerton created to record ultra-slow motion video of a nuclear explosion.

Despite its primary objective centering around measure the size of the explosion as it expanded, the Rapatronic camera lead to the discovery of a particularly interesting phenomenon. Examining the ultra-slow motion video revealed mottling of the fireball – the appearance of spots and smears of color which propagated through the fireball.

It was the first time such an effect had been observed, which lead to an intriguing discovery. According to NNSS, the initial growth of the fireball following an explosion is accelerated by radioactive transport – essentially thermal x-rays which “outpace” the actual exploding bomb debris.

Just Milliseconds later, a shock front forms, forcing further expansion of the fireball. However, as the shock waves heat up the surrounding air, they create a barrier and slow down the expansion of the fireball.

“The debris from the actual bomb and shot cab is vaporized, and the vapors are initially accelerated to very high velocities before the shock front forms. Once the shock front forms, clumps of the material splash against the back of the shock front in an irregular pattern creating the mottled appearance.” NNSS explains.

Born out of a dark time, the Rapatronic camera has still provided to be a valuable tool for scientists to use and better understand the which unfold in the milliseconds following the detonation of a nuclear bomb. And all of it would have been impossible without the ingenious efforts of Charles Wyckoff and Dr. Edgerton.
